WebOS Setup

WebOS devices support Wi-Fi connections, including WPA2-Personal, Open, and WPA2-Enterprise networks. To join a WPA2-Enterprise network, configure your device's network settings as outlined below.

Required WebOS version

• WPA2-Enterprise networks are supported only on WebOS 6 and higher.
• WPA2-Personal networks are supported on all versions.

Supported WPA2-Personal / WPA2-Enterprise authentication methods

Core App Version	Front-Applet Version	OPEN	WPA2-Personal	EAP-TLS	EAP-TTLS	PEAP (MSCHAPv2)	PEAP (GTC)
≤2.9.0	≤8.5.1	✅	✅	❌	❌	❌	❌
≥2.10.0	8.5.2	✅	✅	❌	❌	❌	✅
≥2.11.0-beta.0	≥8.5.3	✅	✅	✅	✅	✅	✅

Importing certificates via JS API SDK

To import certificates, use an Applet, Script, Plugin, or Runner with @signageos/front-applet version ≥8.5.2.

warning

• Certificates must be in PEM format (required by webOS).
• New lines in certificates can be replaced by \n if necessary.

Our documentation for importing certificates in JS API SDK.

import sos from '@signageos/front-applet';

// Importing PEAP MSCHAPv2 CA certificate
await sos.management.network.importCertificates({
 'type': 'PEAP',
 'caCertificate': '-----BEGIN CERTIFICATE-----\nMIIEmzCCA4Og\n-----END CERTIFICATE-----'
});

// Importing TTLS CA certificate
await sos.management.network.importCertificates({
 'type': 'EAP-TTLS',
 'caCertificate': '-----BEGIN CERTIFICATE-----\nMIIEmzCCA4Og\n-----END CERTIFICATE-----'
});

// Importing EAP TLS certificates
await sos.management.network.importCertificates({
 'type': 'EAP-TLS',
 'caCertificate': '-----BEGIN CERTIFICATE-----\nMIIEmzCCA4Og\n-----END CERTIFICATE-----',
 'clientCertificate': 'Bag Attributes\n    localKeyID: 17 D1\nMn3jZC\n-----END ENCRYPTED PRIVATE KEY-----',
 'clientKey': '-----BEGIN ENCRYPTED PRIVATE KEY-----\nMIIFHDBOZl+A==\n-----END ENCRYPTED PRIVATE KEY-----'
});

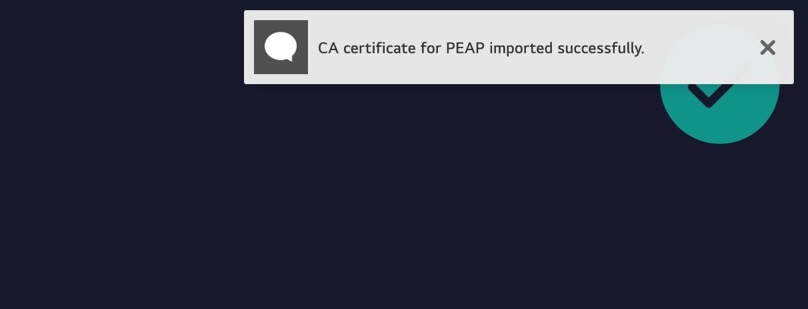

Verification on screen or in webOS settings

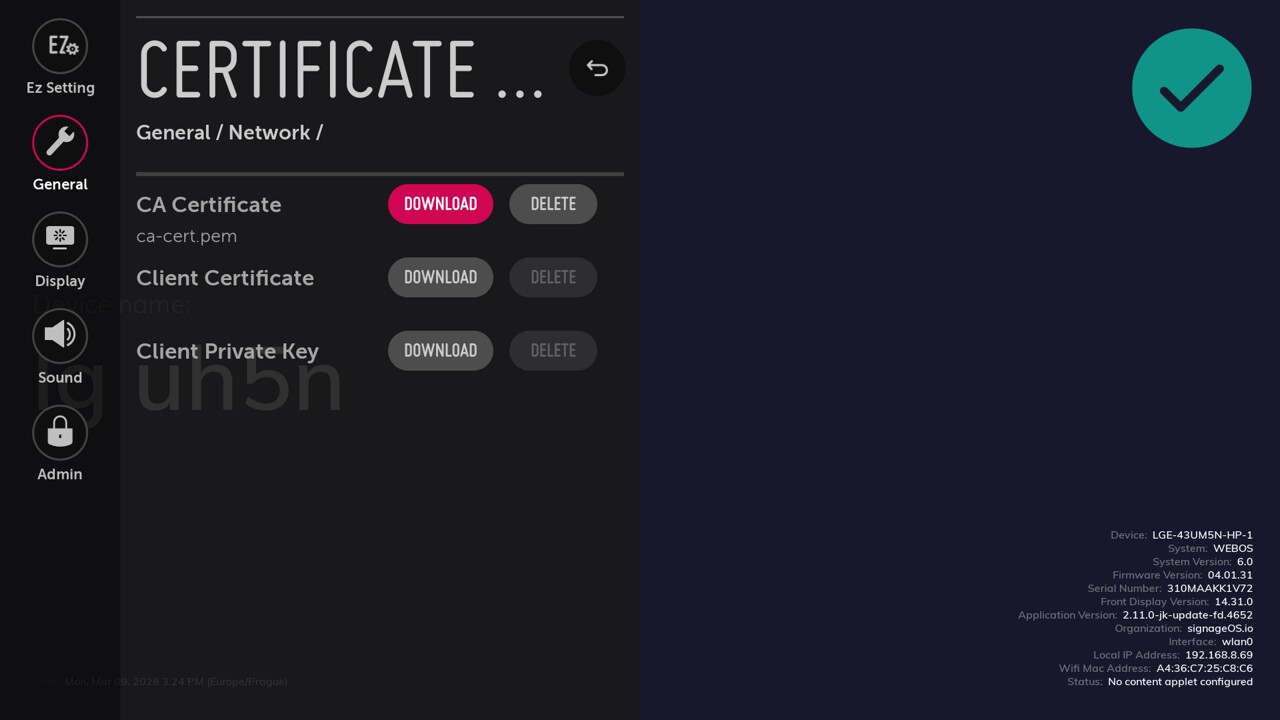

If you have correctly imported the certificates via JS API, you can verify them on the display by displaying a result notification. Imported certificates are also displayed in settings: Settings button -> General -> Network -> Certificate Download.

Manual import via webOS settings

You can also import certificates via a USB drive. The certificates must be placed in the root of a USB drive attached to the webOS display.

Folders on the USB drive should be structured as follows:

# Methods: PEAP or EAP-TTLS
 └── ca.pem

# Method: EAP-TLS
├── ca.pem
├── client.pem
└── client.key

After connecting the USB drive to the webOS display, go to Settings button -> General -> Network -> Certificate Download and select your certificates based on the authentication method.

Connecting to Wi-Fi Enterprise

JS API SDK

With the Wi-Fi JS API SDK, connect to a WPA2-Enterprise network directly from your applet, script, or runner. This approach allows you to manage the connection process within your application.

Our documentation page for Wi-Fi connect function in JS API SDK.

WebOS connect issues

Connecting to Wi-Fi on WebOS may fail unless you first execute sos.management.wifi.scan(). Always run this command before configuring a network.

Note: From Core App version 2.11.0, scan() is no longer required — it is called in the background automatically when you call connect().

import sos from '@signageos/front-applet';

// Connect to WPA2-Enterprise network with EAP PEAP + GTC method
await sos.management.wifi.connect('MyEnterpriseNetwork', undefined, {
 securityType: '802.1x_EAP',
 eap: {
  method: 'PEAP',
  identity: 'my-username',
  identityPassword: 'tokenCode',
  phase2Auth: 'GTC',
  useCaCert: false,
 }
});

// Connect to WPA2-Enterprise network with EAP PEAP + MSCHAPv2 authentication
await sos.management.wifi.connect('MyEnterpriseNetwork', undefined, {
	securityType: '802.1x_EAP',
	eap: {
		method: 'PEAP',
		identity: 'my-username',
		identityPassword: 'my-username-password',
		phase2Auth: 'MSCHAPv2',
		useCaCert: true,
	}
});

// Connect to WPA2-Enterprise network with EAP TTLS authentication
await sos.management.wifi.connect('MyEnterpriseNetwork', undefined, {
	securityType: '802.1x_EAP',
	eap: {
		method: 'TTLS',
		identity: 'my-username',
		identityPassword: 'my-username-password',
		phase2Auth: 'PAP',
 		useCaCert: true
	}
});

// Connect to WPA2-Enterprise network with EAP TLS authentication
// Note: Selecting domain for user is not available on webOS.
await sos.management.wifi.connect('MyEnterpriseNetwork', undefined, {
	securityType: '802.1x_EAP',
	eap: {
		method: 'TLS',
		identity: 'my-username',
		identityPassword: 'my-username-password',
	}
});

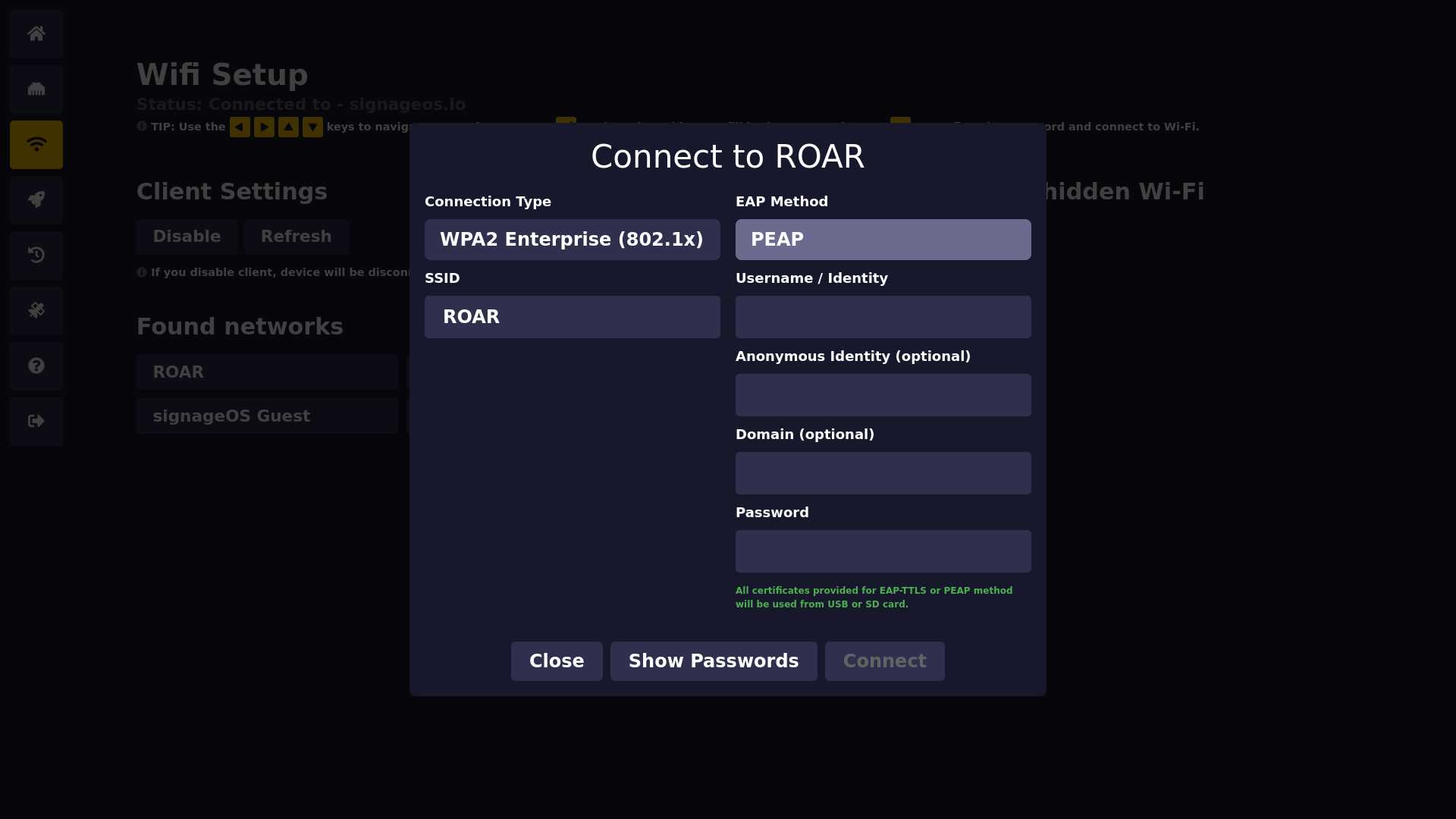

OSD Menu

If you have already imported certificates to the webOS device, you can connect to Wi-Fi enterprise via our OSD menu. It's available on every device and accessed with a security PIN code.

1. Open the OSD menu by entering the PIN code shown on the Box or Device default screen.
2. Navigate to the "Wi-Fi" settings (3rd section) in the OSD menu.
3. Enable the Wi-Fi module and select search for available networks.
4. Select your WPA2-Enterprise network from the list of available networks.
5. In the menu, select the EAP method used by your network (PEAP, TTLS, or TLS).
6. Fill in the required fields based on the selected EAP method.
7. Finally, click on "Connect" to establish the connection to the WPA2-Enterprise network. The OSD shows the connection status at the top within seconds. If successful, the connected Wi-Fi network name appears at the top.
